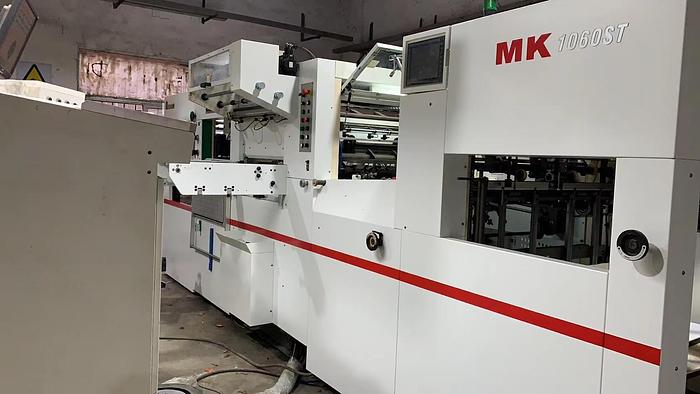

2013 MK1060ST Automatic Hot Foil Stamping & Die Cutting Machine

2013 MK1060ST Automatic Hot Foil Stamping & Die Cutting Machine

orCall +44 1924 385134

Description

This machine is currently undergoing a complete strip, clean and refurbishment process and will be available end of May 2022.


Technical Data

MK1060ST

Max sheet size

920mm X 650mm

Min sheet size

360mm X 320mm

Max die cutting size

910mm X 630mm

Max stamping size

900mm X 600mm

Gripper margin

9~17mm

Inner chase size

960mm x 666mm

Stoke range

90-2000g/m2 (paper)

0.1~2mm(paper)

≤4mm(corrugated)

Max working force

200 tons

Max working speed

7000 s/h die cutting 6000 s/h stamping

Max feeder pile height

1440mm (wooden pallet included)

Max delivery pile height

1200mm (wooden pallet included)

Max diameter of foil roll in longitudinal

Φ250mm

Widest dimension of foil roller in transversal

Φ200mm

Die cutting accuracy

≤±0.075mm(Die cutting and stamping)

≤±0.20mm (Hologram stamping)

Full load wattage

76.6KW

Heating system

20 heating zones,40~180℃ Adjustable

Width of the foil

20~910mm

Overall dimension

7360mm(L)x5500mm(W)x2400mm(H)

Air supply

0.6~0.7MPa,≥1m3/min

Net weight

About 26 tons


Specifications

ManufacturerMK Masterwork
ModelMK-1060ST
Year2013
ConditionUsed
Stock Number00008
