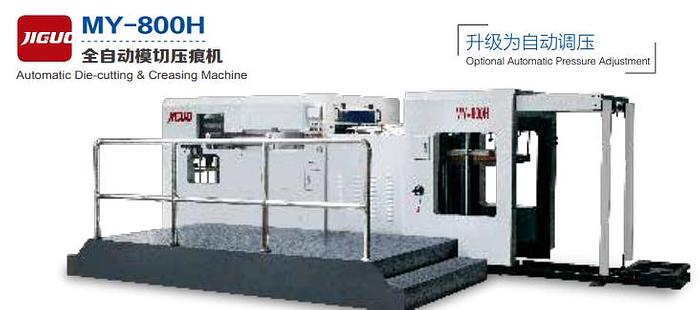

JIGUO MY-800H Automatic Die-cutting & Creasing Machine

JIGUO MY-800H Automatic Die-cutting & Creasing Machine

orCall +44(0)7702 212002


This automatic die-cutting and creasing machine is the key equipments in the post-print die-cutting process for cardboard box and corrugated board carton. Better than the traditional die-cutting equipment, the automatic machine has the advantages of high speed, large quantity, high security coefficient, high accuracy. It can produce various of beautiful packing boxes. This machine adopts the international advanced technique, which has the high level of stability. We select and use the imported international famous brands for all electric appliances piece, standard parts and key components, such as, programmable controller, frequency converter, human-computer interface, screws, bearings, chains, bent axle, worm wheel etc.


Max. Paper Size810×610mm
Min. Paper Size320×230mm
Max. Diecutting Size790×590mm
Max. Cutting Speed8500s/h
Die-cutting Precision±0.1mm
Sheet Thickness纸板 0.1-1.5mm 瓦楞纸 ≤4mm
Max. Pressure250T
Total Power14.5kw
Net Weight9.5T
Overall Dimension5600×3400×2000mm
Air Requirements(Buyer provide)0.8Mpa, > 0.36m3 /min
