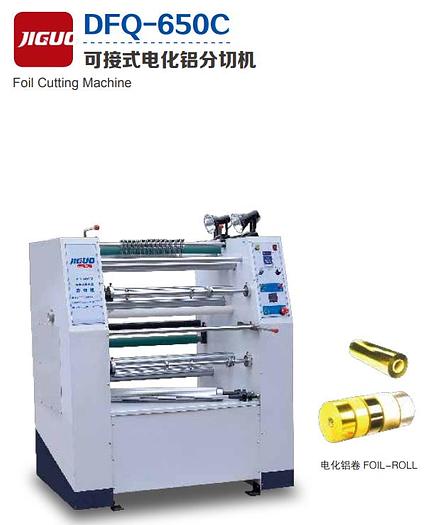

Foil Cutting Machine

Foil Cutting Machine
orCall +44(0)1924 261975
Description
The precision of foil cut by this machine is high, which reduces the reserved width, with about 3-10mm saved per roll, which can consider ably reduce the cost. This equipment has advantages of rational design, easy operation, smoothness in roll turning over, no left and right dislocation, accurate cutting of front and back rod, samll coverage, single and double rolls with rectifying deviation, accurate meter-measured function for stop. Stepless speed regulation and automatic cleaning are realized with the help of improted transducer. Therefore it is an ideal choice for the foil-cutting users.
Specifications
Manufacturer | Jiguo |
Model | DFQ-650C |
Condition | New |
Core of Paper Roll | 1 吋、3 吋 ( 互 exchangeable) |
Roll Diameter | 400mm 以下 |
Cutting Width | 15-650mm(任意 Optional) |
Cutting Speed | 0~120m/min |
Delivery Roll Diameter | 500mm 以下 |
Delivery Roll Width | 650mm 以下 |
Total Power | 2.2kw |
Numbers In the Counter | 9999 以内 |
Rectification | 0~10mm |
Total Weight | 1000kg |
Overall Dimensions | 1300×1200×1570mm |
Air Requirements (Buyer provide) | 0.5Mpa |
