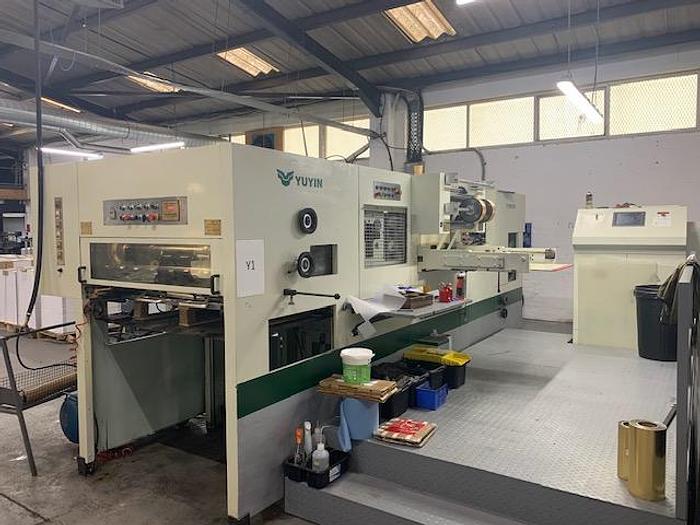

2008 YuYin TYM1020-H Hot Foil Stamping Machine

2008 YuYin TYM1020-H Hot Foil Stamping Machine

orCall +44 1924 385134


Very well maintained machine and very clean with no damages. Currently still in production, available early 2021.

New gripper chains in 2019.


Max. Paper Size 1020×720mm

Min. Paper Size 400×360mm

Max. Diecutting Size 1010×710mm

Max. Foil Stamping Size Longitudinal: 970×685mm

Lateral: 960×580mm

Max. Diecutting Speed 6500s/h

Max. Stamping Speed 5000s/h

Max. Pressure 250 T

Max. Foil DiameterФ195mm/3″   Ф100mm/1″

Sheet Thickness Cardboard:0.1-1.5mm

Corrugated paper:≤4mm

Net Weight 18.5 T

Total Power 46.5kw

Quantities Of Heating Area12

Diecutting Precision±0.1mm

Overall Dimension 5470×3940×2585mm


ModelTYM1020-H Hot Foil Stamping Machine
Serial Number005
Stock Number00002
Max. Paper Size1020×720mm
Min. Paper Size400×360mm
Max. Diecutting Size1010×710mm
Max. Cutting Speed6500s/h
Die-cutting Precision±0.1mm
Sheet Thickness0.1-1.5mm / ≤4mm
Max. Pressure250 T
Total Power46.5kw
Net Weight18.5 T
Overall Dimension5470×3940×2585mm
